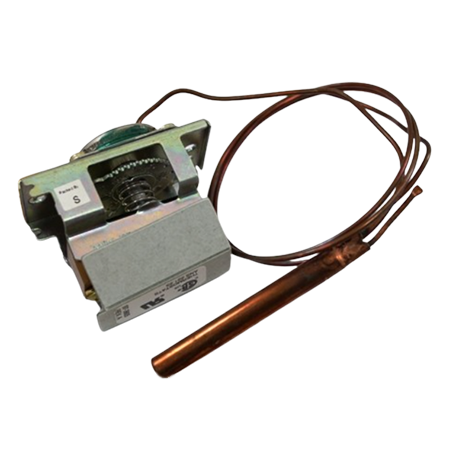

The Raypak 014307F is a genuine OEM auto-reset temperature controller designed for compatible Raypak heating equipment. It consists of an actuator, capillary tube, and sensor that work together to monitor operating temperature and interrupt the control circuit when the selected upper limit is reached.

The controller has an adjustable temperature range of 140–240°F and supports compatible 120 VAC and 240 VAC applications. Its automatic-reset design allows the control circuit to resume operation after the sensed temperature returns to an acceptable level. The Raypak 014307F is also UL-listed and CSA-certified.


Frequently Asked Questions

• What is the Raypak 014307F?

The Raypak 014307F is a genuine OEM adjustable high-limit temperature controller for compatible Raypak heating equipment. It is designed to interrupt equipment operation when the monitored temperature reaches the selected upper limit.

• What is the temperature range of the Raypak 014307F?

The controller has an adjustable temperature range of 140°F to 240°F.

• Does the Raypak 014307F reset automatically?

Yes. The controller uses an automatic-reset design. After the sensed temperature falls below the controller’s reset point, the control can restore the operating circuit without requiring a manual reset.

• What voltage does the Raypak 014307F support?

The controller is specified for compatible 120 VAC and 240 VAC applications.

• What is the purpose of a high-limit temperature controller?

A high-limit temperature controller helps protect heating equipment from excessive operating temperatures. When the established limit is reached, the controller interrupts the applicable control circuit to stop or restrict heating operation.

• Is the Raypak 014307F compatible with every Raypak heater?

No. Compatibility depends on the heater model, configuration, production date, and existing control arrangement. Confirm the equipment model and serial number against Raypak parts documentation before ordering.

• Can the temperature setting be adjusted?

Yes. The high-limit setting can be adjusted within its specified 140°F to 240°F operating range. Adjustment and installation should be completed by a qualified service technician.
